PENTAIR INTELLIFLO PUMP 8 SPEED 3 HP - 011056

Sku:

011056

Be the first to review this product

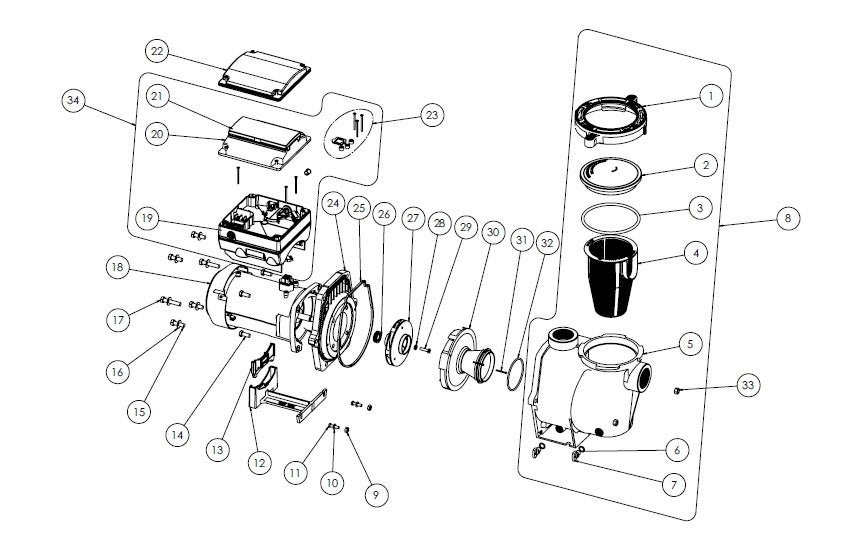

INTELLIFLO REPLACEMENT PARTS



Legend Part # Description
1 357199 Cam & Ramp® Plastic Clamp
1 357150 Black WhisperFlo® Plastic Clamp
2 357151 WhisperFlo See Through Lid
3 350013 350013 WHISPERFLO STRAINER COVER ORING (AFTER 11/1998)
3 352600 Model 700 Lid O-Ring 6.25" x .25"
3 805-0436 6" STRAINER COVER ORING
4 070387 Whisperflo Pump Strainer Basket 8"
4 B-199 WHISPERFLO STRAINER BASKET
4 319-3230 6" TRAP BASKET W/ HANDLE
5 350015 WhisperFlo Strainer Pot Volute
5 357157 Black Volute Replacement Housing
6 192115 1/16" x 1/2" Buna N-70 Shore Drain Plug O-Ring
6 35505-1116 #2-014 Buna N674 O-Ring
6 14930-0032 Sta-Rite® Plastic Slide Valve Index Plate Kit
6 39010000 Impeller Lock O-Ring #2-014
6 805-0014 O-RING, #014 - 48FR PUMP FACEPLATE PLUG
7 071131 Drain Plug Knob 1.25" x .75" x .5"
7 357161 WhisperFlo® Black Drain Plug .25"
8 357243 WhisperFlo® Almond Pot Assembly
8 357244 WhisperFlo® Black Pot Assembly
9 071406 1.4" 20 Stainless Steel Hex Head nut
10 072183 1/4" x 5/8" 18-8 Stainless Steel Flat Washer
11 071657 071657 P26948 2/PK .25-20x1" SS HEX HEAD SCREW
12 070927 Almond Motor Support Foot 6.5" x 2.25"
12 357159 Motor Support Foot Insert
13 070929 Almond Foot Insert 4.5" x 2" x .5"
13 357160 Motor Support Foot Insert
14 070429 Stainless Steel Hex Head Bolt3/8-16 Threaded
15 070430 Stainless Steel Hex Head Cap Screw 18-8 3/8-16" x 1.25"
16 072184 Stainless Steel Flat Washer 18-8 3/8" x 7/8" x .5"
17 070431 Stainless Steel Hex Head Cap Screw 18-8 3/8-16" x 2"
17 60-1014 3/8-16x1.75" SS HEX HEAD CAP SCREW
18 350305S Almond 10 Pole Motor 3.2Kw
18 350306S Black Intellipro Motor 23" x 9" x 12"
19 356880Z IntelliFlo® VSF Drive Kit before 10/2020 Almond
19 356894Z Drive, Variable Speed
20 357527Z Almond Top Cover Keypad Assembly
20 358527Z Black Keypad Cover Assembly
21 400100 Almond Keypad Cover Assembly Kit
21 401100 Black Control Cover Assembly Kit
22 356904Z Almond Keypad Relocation Kit

22 356905Z Black Wall Mount Keypad Relocation
23 355685 IntelliFlo® Hardware and Gasket Kit
24 074564 WhisperFlo® Almond Seal Plate
24 350202 Almond Seal Plate Kit with Gasket
24 25357-300-000 Whisper-Flo Pump Seal Plate
24 357158 WhisperFlo® Seal Plate
25 357100 Black Seal Plate Gasket
25 G-413-9 BLACK WHISPERFLO SEAL PLATE GASKET
25 357102 Black Seal Plate Gasket
25 R0555900 Body Gasket for JHP Series Pumps
25 26100-357-100 Whisper-Flo Seal Plate Gasket (357100)
26 071734S Shaft Seal Package Kit
26 PS-1000 PS1000 SHAFT SEAL
27 073131 WhisperFlo® Impeller 3HP
27 25305-131-000 WF Pump Impeller 12 (073131)
28 075713 Rubber Impeller Washer
29 071652 Impeller Screw 1.25" x .5" x .32"
30 072928 WhisperFlo Diffuser 3HP
31 071660 Stainless Steel Socket Head Cap Screw Set
32 355227 Buna-N 70 Pump Diffuser O-Ring
32 O-359-9 WHISPERFLO DIFFUSER ORING
33 071403 Bright Nickel Plated Hex Head Nut 3/8"-16
34 356922Z Almond Drive Assembly with Keypad
34 355868Z Drive Kit Assembly

Features

A variable-speed pool pump runs at optimum speed and duration.

Ultra-efficient permanent magnet motor design reduces noise and vibration for greater efficiency and longer pump life.

Dramatically quieter operation—as low as 45 decibels—about four times quieter than most traditional-style pumps

Totally enclosed fan-cooled (TEFC) design and low average operating speed make IntelliFlo the quietest variable-speed pool pump on earth.

Fully compatible with Pentair Automation and Controls and other brands of digital pool and spa controls for managing pumps, heating, lighting, spa jets, and water features

Built-in diagnostics protect the pump for a longer service life.
Specifications
Height 13.000000000
Length 28.000000000
Width 16.000000000
Inventory Out of Stock
Brand PENTAIR WATER POOL AND SPA
Horsepower 3 HP
Pooltype In Ground
Pump Speed Variable Speed
Voltage 230 V
Brand PENTAIR WATER POOL AND SPA
Features A variable-speed pool pump runs at optimum speed and duration.

Ultra-efficient permanent magnet motor design reduces noise and vibration for greater efficiency and longer pump life.

Dramatically quieter operation—as low as 45 decibels—about four times quieter than most traditional-style pumps

Totally enclosed fan-cooled (TEFC) design and low average operating speed make IntelliFlo the quietest variable-speed pool pump on earth.

Fully compatible with Pentair Automation and Controls and other brands of digital pool and spa controls for managing pumps, heating, lighting, spa jets, and water features

Built-in diagnostics protect the pump for a longer service life.
Description

INTELLIFLO REPLACEMENT PARTS



Legend Part # Description
1 357199 Cam & Ramp® Plastic Clamp
1 357150 Black WhisperFlo® Plastic Clamp
2 357151 WhisperFlo See Through Lid
3 350013 350013 WHISPERFLO STRAINER COVER ORING (AFTER 11/1998)
3 352600 Model 700 Lid O-Ring 6.25" x .25"
3 805-0436 6" STRAINER COVER ORING
4 070387 Whisperflo Pump Strainer Basket 8"
4 B-199 WHISPERFLO STRAINER BASKET
4 319-3230 6" TRAP BASKET W/ HANDLE
5 350015 WhisperFlo Strainer Pot Volute
5 357157 Black Volute Replacement Housing
6 192115 1/16" x 1/2" Buna N-70 Shore Drain Plug O-Ring
6 35505-1116 #2-014 Buna N674 O-Ring
6 14930-0032 Sta-Rite® Plastic Slide Valve Index Plate Kit
6 39010000 Impeller Lock O-Ring #2-014
6 805-0014 O-RING, #014 - 48FR PUMP FACEPLATE PLUG
7 071131 Drain Plug Knob 1.25" x .75" x .5"
7 357161 WhisperFlo® Black Drain Plug .25"
8 357243 WhisperFlo® Almond Pot Assembly
8 357244 WhisperFlo® Black Pot Assembly
9 071406 1.4" 20 Stainless Steel Hex Head nut
10 072183 1/4" x 5/8" 18-8 Stainless Steel Flat Washer
11 071657 071657 P26948 2/PK .25-20x1" SS HEX HEAD SCREW
12 070927 Almond Motor Support Foot 6.5" x 2.25"
12 357159 Motor Support Foot Insert
13 070929 Almond Foot Insert 4.5" x 2" x .5"
13 357160 Motor Support Foot Insert
14 070429 Stainless Steel Hex Head Bolt3/8-16 Threaded
15 070430 Stainless Steel Hex Head Cap Screw 18-8 3/8-16" x 1.25"
16 072184 Stainless Steel Flat Washer 18-8 3/8" x 7/8" x .5"
17 070431 Stainless Steel Hex Head Cap Screw 18-8 3/8-16" x 2"
17 60-1014 3/8-16x1.75" SS HEX HEAD CAP SCREW
18 350305S Almond 10 Pole Motor 3.2Kw
18 350306S Black Intellipro Motor 23" x 9" x 12"
19 356880Z IntelliFlo® VSF Drive Kit before 10/2020 Almond
19 356894Z Drive, Variable Speed
20 357527Z Almond Top Cover Keypad Assembly
20 358527Z Black Keypad Cover Assembly
21 400100 Almond Keypad Cover Assembly Kit
21 401100 Black Control Cover Assembly Kit
22 356904Z Almond Keypad Relocation Kit

22 356905Z Black Wall Mount Keypad Relocation
23 355685 IntelliFlo® Hardware and Gasket Kit
24 074564 WhisperFlo® Almond Seal Plate
24 350202 Almond Seal Plate Kit with Gasket
24 25357-300-000 Whisper-Flo Pump Seal Plate
24 357158 WhisperFlo® Seal Plate
25 357100 Black Seal Plate Gasket
25 G-413-9 BLACK WHISPERFLO SEAL PLATE GASKET
25 357102 Black Seal Plate Gasket
25 R0555900 Body Gasket for JHP Series Pumps
25 26100-357-100 Whisper-Flo Seal Plate Gasket (357100)
26 071734S Shaft Seal Package Kit
26 PS-1000 PS1000 SHAFT SEAL
27 073131 WhisperFlo® Impeller 3HP
27 25305-131-000 WF Pump Impeller 12 (073131)
28 075713 Rubber Impeller Washer
29 071652 Impeller Screw 1.25" x .5" x .32"
30 072928 WhisperFlo Diffuser 3HP
31 071660 Stainless Steel Socket Head Cap Screw Set
32 355227 Buna-N 70 Pump Diffuser O-Ring
32 O-359-9 WHISPERFLO DIFFUSER ORING
33 071403 Bright Nickel Plated Hex Head Nut 3/8"-16
34 356922Z Almond Drive Assembly with Keypad
34 355868Z Drive Kit Assembly
