PUMP INTELLIFLO VS +SVRS - 011057

Sku:

011057

Be the first to review this product

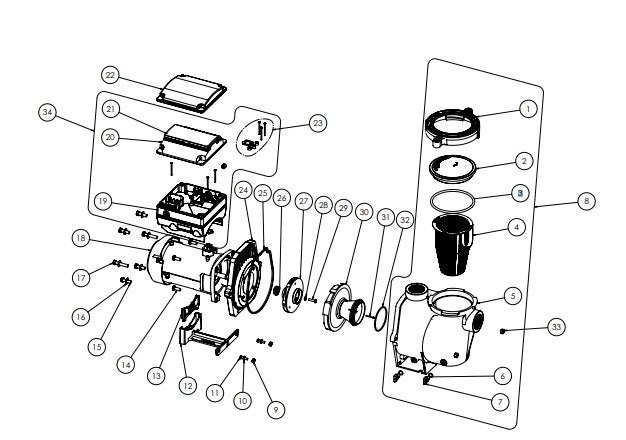

INTELLIFLO VS PUMP - REPLACEMENT PARTS

Item  Part  No. Description Alternative Part No.
1 357199 Clamp, Cam and Ramp
2 357151 See-through Lid
3 350013 Lid O-Ring
4 70387 Strainer Basket
5 350015 Volute WF
6 192115 O-Ring 112 for Drain Plug (Qty 2)
7 071131 Drain Plug WF (Qty 2)
8 357243 Volute Kit (Contains items #1-7)
9 071406 Nut 1/4-20 Hex SS (Qty 2)
10 072186 Washer, Flat 1/4" ID x 5/8" OD (Qty 2)
11 071657 Screw 1/4-20 x 1" Hex Cap SS (Qty 2)
12 070927 Foot WF
13 070929 Foot Insert WFE Pump Motor Support
14 070429 Bolt, Hex Head 3/8-16 x 1.25" (Qty 4)
15 072184 Washer, Flat 3/8" ID x 7/8 OD (Qty 6)
16 070430 Bolt, Hex Head 3/8-16 x 1.25" (Qty 4)
17 070431 Bolt, Hex Head 3/8-16 x 2" (Qty 2)
18 350305S Motor, 3.2 kW 10 Pole
19 356880Z Drive (VSF model)
19 356878Z Drive (2VST and VS models)
20 357527Z Keypad Assembly Kit (Contains item #21)
21 400100 Keypad Cover
22 356904Z  Keypad Relocation Kit
23 355685 Drive Hardware Kit
24 074564 Seal Plate
25 357100 Seal Plate Gasket
26 071734S Mechanical Seal
27 073131 Impeller
28 075713 Rubber Washer, Impeller Set Screw
29 071652 Impeller Set Screw 1/4-20 LH Thread
30 072928 Diffuser
31 071660 Diffuser Set Screw 4-40 x 1-1/8 (Qty 2)
32 355227 Diffuser O-Ring
33 071404 Nut 3/8" Brass, Nickel Plated (Qty 2)
34 356922Z Drive Kit ( VSF model) (Incl. Items #19-23)
34 356879Z Drive Kit (2VST and VS models) (Incl. Items #19-23)

Features

Ability to program exact pump speeds for specific operations (filtering, heating, cleaning, spa jets, water features, and more)
Built-in diagnostics protect the IntelliFlo pump from the most common causes of premature failure: overheating, freezing, and voltage irregularities.
Includes priming protection. No SVRS calibrations are needed. The built-in SVRS cannot be turned off.
The safety lock-out feature (password protected) prevents pump speed settings from being changed by unauthorized personnel.
Ability to set minimum and maximum speeds so the pump will only operate within the ranges set to help assure safe operation and long life
Compatible with Pentair Automation Systems
Compliant with the current ASME A112.19.17 Standard for Safety Vacuum Release Systems (SVRS)
Operates seamlessly on 50 Hz or 60 Hz input power. Flow and speed are constant when operating at 50 Hz or 60 Hz.
WEF 6.9, THP 3.95
Specifications
Height 17.000000000
Length 28.000000000
Width 12.000000000
Inventory Out of Stock
Brand PENTAIR WATER POOL AND SPA
Horsepower 3 HP
Pooltype In Ground
Pump Speed Variable Speed
Voltage 230 V
Brand PENTAIR WATER POOL AND SPA
Features Ability to program exact pump speeds for specific operations (filtering, heating, cleaning, spa jets, water features, and more)
Built-in diagnostics protect the IntelliFlo pump from the most common causes of premature failure: overheating, freezing, and voltage irregularities.
Includes priming protection. No SVRS calibrations are needed. The built-in SVRS cannot be turned off.
The safety lock-out feature (password protected) prevents pump speed settings from being changed by unauthorized personnel.
Ability to set minimum and maximum speeds so the pump will only operate within the ranges set to help assure safe operation and long life
Compatible with Pentair Automation Systems
Compliant with the current ASME A112.19.17 Standard for Safety Vacuum Release Systems (SVRS)
Operates seamlessly on 50 Hz or 60 Hz input power. Flow and speed are constant when operating at 50 Hz or 60 Hz.
WEF 6.9, THP 3.95
Description

INTELLIFLO VS PUMP - REPLACEMENT PARTS

Item  Part  No. Description Alternative Part No.
1 357199 Clamp, Cam and Ramp
2 357151 See-through Lid
3 350013 Lid O-Ring
4 70387 Strainer Basket
5 350015 Volute WF
6 192115 O-Ring 112 for Drain Plug (Qty 2)
7 071131 Drain Plug WF (Qty 2)
8 357243 Volute Kit (Contains items #1-7)
9 071406 Nut 1/4-20 Hex SS (Qty 2)
10 072186 Washer, Flat 1/4" ID x 5/8" OD (Qty 2)
11 071657 Screw 1/4-20 x 1" Hex Cap SS (Qty 2)
12 070927 Foot WF
13 070929 Foot Insert WFE Pump Motor Support
14 070429 Bolt, Hex Head 3/8-16 x 1.25" (Qty 4)
15 072184 Washer, Flat 3/8" ID x 7/8 OD (Qty 6)
16 070430 Bolt, Hex Head 3/8-16 x 1.25" (Qty 4)
17 070431 Bolt, Hex Head 3/8-16 x 2" (Qty 2)
18 350305S Motor, 3.2 kW 10 Pole
19 356880Z Drive (VSF model)
19 356878Z Drive (2VST and VS models)
20 357527Z Keypad Assembly Kit (Contains item #21)
21 400100 Keypad Cover
22 356904Z  Keypad Relocation Kit
23 355685 Drive Hardware Kit
24 074564 Seal Plate
25 357100 Seal Plate Gasket
26 071734S Mechanical Seal
27 073131 Impeller
28 075713 Rubber Washer, Impeller Set Screw
29 071652 Impeller Set Screw 1/4-20 LH Thread
30 072928 Diffuser
31 071660 Diffuser Set Screw 4-40 x 1-1/8 (Qty 2)
32 355227 Diffuser O-Ring
33 071404 Nut 3/8" Brass, Nickel Plated (Qty 2)
34 356922Z Drive Kit ( VSF model) (Incl. Items #19-23)
34 356879Z Drive Kit (2VST and VS models) (Incl. Items #19-23)
